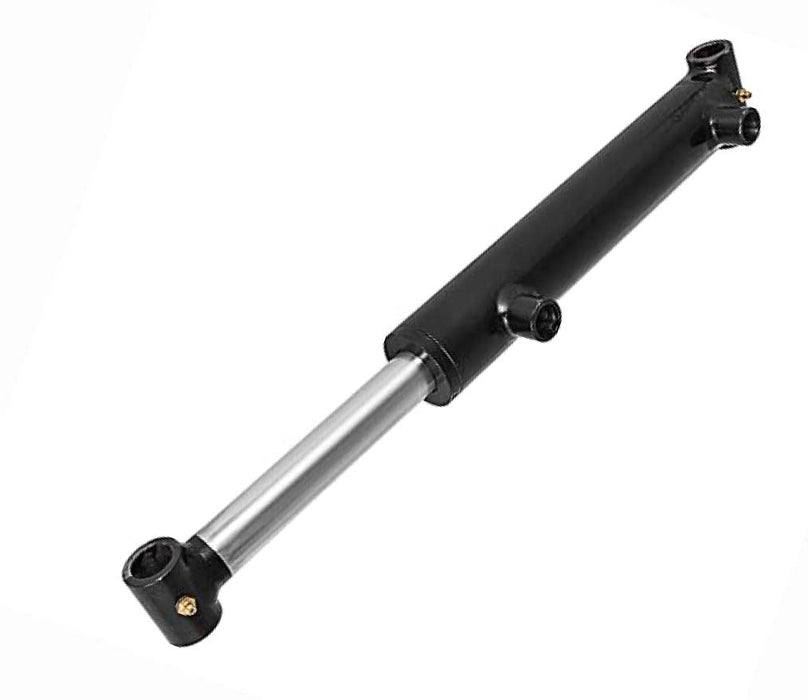

Welded Cross Tubes Hydraulic Cylinder 3000 Psi - 2" Bore X 14" Stroke X 1.25" Rod
Availability:
Low stock

Welded Cross Tubes Hydraulic Cylinder 3000 Psi - 2" Bore X 14" Stroke X 1.25" Rod

by AMRAP HYDRAULICS
Save $16.26 Save $16.26
$170.06
$170.06 - $170.06
$170.06
$153.80
$153.80 - $153.80
$153.80
SKU 2014-WT
  • The Welded Cross Tubes hydraulic cylinder is meticulously crafted with a Bore size of 2", Stroke length of 14", and a Rod diameter of 1-1/4".
  • It has a retracted length of 22" and the capability to extend up to 36".
  • The pin holes in this cylinder have a diameter of 1".
  • It is equipped with SAE#6 (O-ring boss) ports, and can withstand a pressure rating of 3000 PSI.
  • Moreover, it possesses an impressive column load capacity of 9420 lbs.
Despite its compact size, this Welded Cross Tubes hydraulic cylinder exhibits exceptional performance even under challenging operating conditions. Additionally, it comes with a 1-year warranty and offers free ground shipping within the Continental US.
